Development of Internet of Things solutions: wireless sensors and innovative services dedicated to energy management
SDG’s of application
Offers from Ewattch

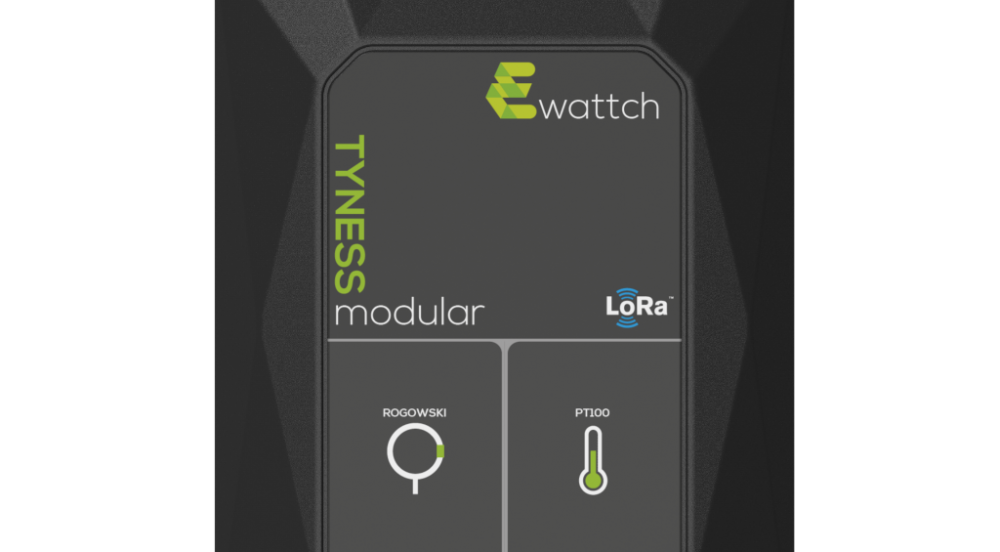

TYNESS-MODULAR LoRaWAN™ - Multifunction sensor
The TYNESS Modular is a multifunction sensor. It helps building the ideal sensor system for your energy managment.
With the TYNESS Modular, build your ideal sensor. Thanks to its 2 additional card slots, combine up to 2 different functions to measure your energy consumption. FEATURES : • 2 additional card slots available • LoRa® or LoRaWAN™ wireless communication • Integrated antenna (option : external antenna) • 2 possible power modes: - External power supply 5V to 12V DC - External battery pack : 3.6 VDC lithium battery - 19Ah (option) • 4 mounting modes: magnets, DIN rail, wall or double-sided (option) • Dimensions : 142 x 77 x 36 mm • Operating temperature range: 0°C to +50°C • Industrial quality and design • CE approved and RoHs compliant • With the GPRS option, the Tyness also becomes a LoRa® gateway Ask for our catalog to know more about our available options and additional boards.

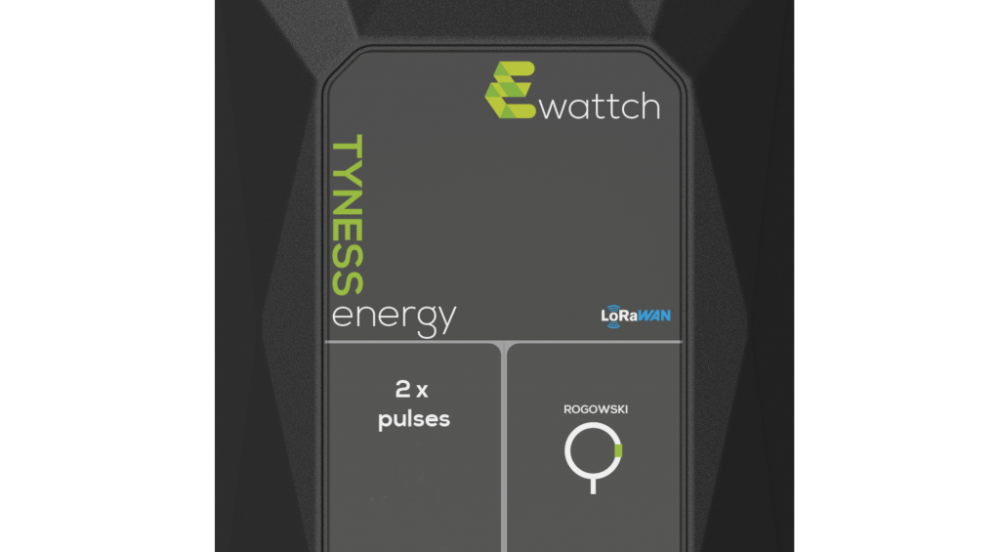

TYNESS-ENERGY - LoRaWAN™ sensor - Pulse metering
The TYNESS-ENERGY is a sensor which allows all the pulse meters and electronic meters to communicate.
The TYNESS Energy allows communication with 2 pulse meters for energy management. One slot for an additional board can expand Tyness’s capacities with other functions: PT100, MBUS, current measurement, etc. Operating with external power supply or an external battery pack. Compatible LoRa® and LoRaWAN™. FEATURES : • 2 pulse metering inputs (dry contact) • 1 additional board slot • Integrated antenna (option : external antenna) • LoRa® ou LoRaWAN™ wireless communication • 2 possible power modes: - External power supply: 5VDC to 12VDC - External battery pack : 3.6 VDC lithium battery 19Ah (option) • Dimensions : 142 x 77 x 36 mm • Operating temperature range: 0°C to +50°C • Mounting on rail DIN or on wall • CE approved and RoHs compliant • With the GPRS option, the Tyness also becomes a LoRa® gateway

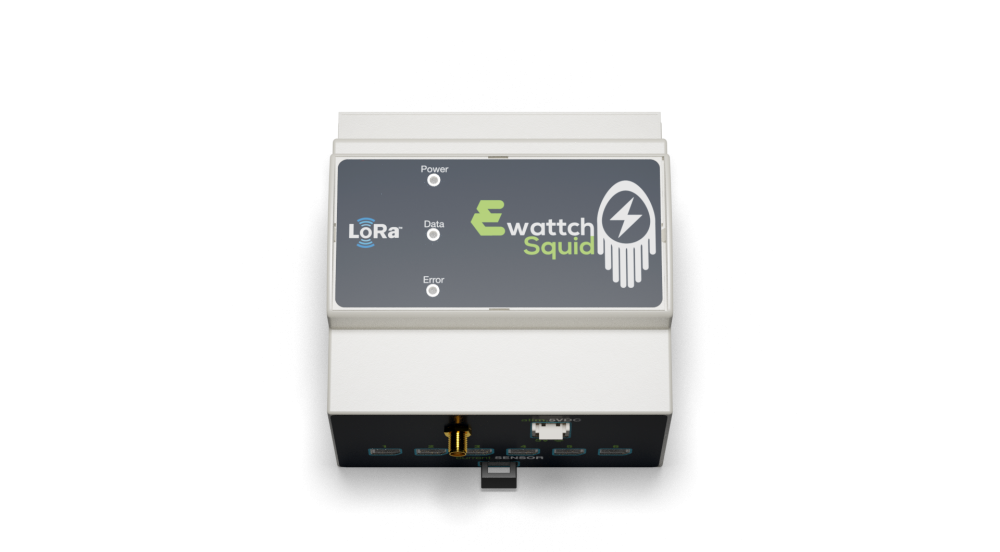

SQUID sensor - LoRaWAN™ - Electricity sub-metering
Installed in an electrical panel, the SQUID’S 12 clamps allow you to sub-meter your installation without modifications.
The SQUID can simply and easily sub-meter your single-phase or three-phase electrical installation. The SQUID is compatible with several different clamp sizes from 10mm to 36mm in diameter, with max currents ranging from 75A to 600A. Communicating via LoRa® and LoRaWAN™

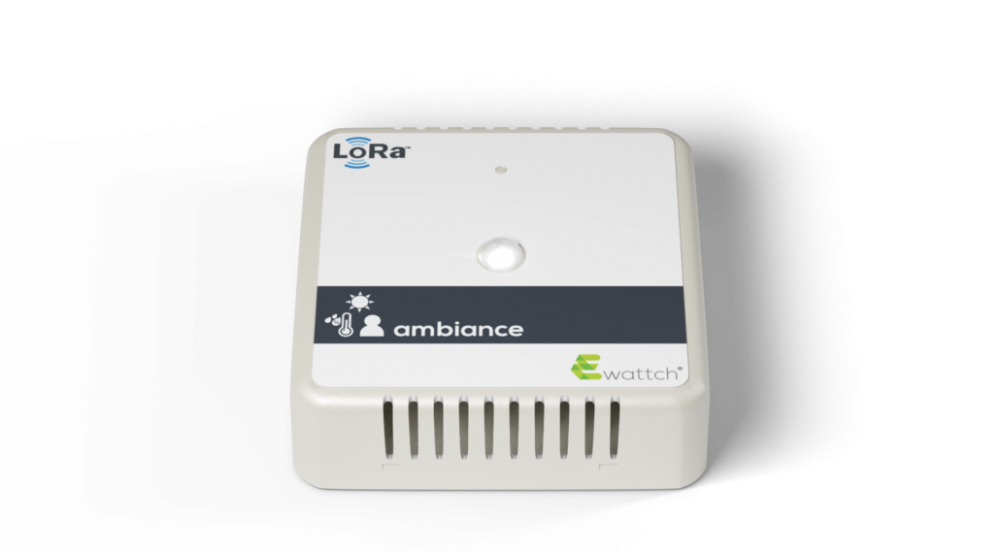

AMBIANCE - 4-in-1 LoRaWAN sensor
The AMBIANCE sensor measures environmental and behavioral data: Temperature, Humidity, Presence, Luminosity
AMBIANCE sensor measuring temperature, humidity, luminosity, presence detection, with 3.6V lithium batteries included, and communicating via LoRaWAN. FEATURES : • Temperature measurement range: -40°C to 60°C • Relative humidity measurement range: 0 to 100% • Presence detection distance: 5m / 130° angle • Luminosity measurement: 0 to 65535Lux • Power supply : 2 lithiums battery 2700mAh included • Battery life: 2 to 5 years • External power supply (option): 5VDC to 12VDC (required with CO2 option) • Dimensions (H x W x D) : 86 x 86 x 25.5 mm • Wall mounting (option : double-sided mounting) • CE approved and RoHs compliant
