"Grupo de Tecnología Alternativa", SC., has developed and invented several alternate technologies that provide sustainable solutions, mainly to resolve the huge problems of sanitation, organic solid waste recycle, including fats and residual or waste waters.

"Grupo de Tecnología Alternativa", SC., has developed and invented serveral alternate technologies that provide sustainable solutions, mainly to resolve the huge problems of sanitation, organic solid waste recycle, including fats and residual or wastwaters, which, all around the world have been among most critical ones caused by the ways governments and private corporations have been handling building codes rules and zonifications criteria with the correlative installations on public as private facilities, ranging from clubs, commerce and entertainment venues, housing, offices, schools, restaurants, etc., conditioning the conventional effects known as "trash" (re)collection, landfills and public sewer among others that have been added to this, depending on the community, country, region, state. "Enlightening Solutions", LLC., became the entity which thru "Grupo de Tecnología Alternativa", SC., commercially distributes and market the use of some of its registered and non-registered original and very unique intellectual property over a variety of specially designed equipment and techniques over which it is conceded the temporary use them and/or scale them for descentralized self-managed continuous application (24/7) for the purpose of accomplish zero organic waste discharges and emissions into the environment, by tailoring limited licensing agreements for very diverse economic agents and generators of organic waste.

Company "ENLIGHTENING SOLUTIONS", LLC., & "GRUPO DE TECNOLOGÍA ALTERNATIVA", SC
Offers

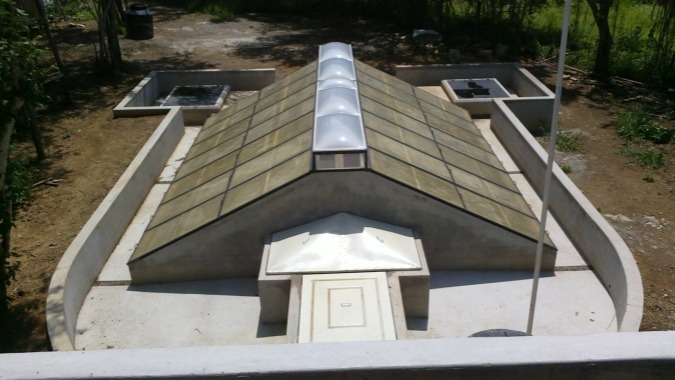

SIRDO-RF (IROWS-RF) for Zero Organic Waste & Recycle Separated/Non-Mixed Residual/Wastewaters & Solids Solar Integral System Solution (Sizes RF-20, RF-50, RF-80, RF-100, RF-120, RF-150, RF-160, RF-200, only onsite built)

Offer SIRDO-RF (IROWS-RF) for Zero Organic Waste & Recycle Separated/Non-Mixed Residual/Wastewaters & Solids Solar Integral System Solution (Sizes RF-20, RF-50, RF-80, RF-100, RF-120, RF-150, RF-160, RF-200, only onsite built)

Description
Recycle Facilities built to continuously attend up to 200+ families, around 1,000+ pax. avg. Scalable up to 5,000+pax.

Authentic originally designed habitats to carry out integrally the SIRDO® (by its acronym in spanish, translated "Integral Organic Waste Recycling System"©) process, which is completely done thru this kind of "Recycling Facilities"© that, following the ethno-biological principle consisting of using sludge with certain physical-chemical characteristics, allows to produce unique and specifically designed and registered environments/habitats like this in the picture, under the SIRDO® brand for inoculant thermophilic bacteria of TERRA® ("prepared mix") that properly disposed inside activates and initiates biological processes of decomposition of liquids (separated residuals waters from gray/soapy waters) and solid organic waste, nutrient retention and transfer of organic carbon to the substrate, producing "High Quality and Impact Bio-Fertilizer" only based on solar energy and without emitting greenhouse gases, or generating leachate, odors or putrefaction, provided that, "management and operation protocols"© SIRDO® invented and specifically developed, improved, tested and registered (also subject to legal norms of industrial and intellectual property) to achieve to accomplish that, are consistently and regularly applied by non-professional personnel previously trained to correctly and promptly execute the indispensable tasks and routines, in precise times and movements to manage and operate the "Induced Stabilization Recycling Facility"® SIRDO®

Available in
Bolivia, Mexico,

Status
Implemented

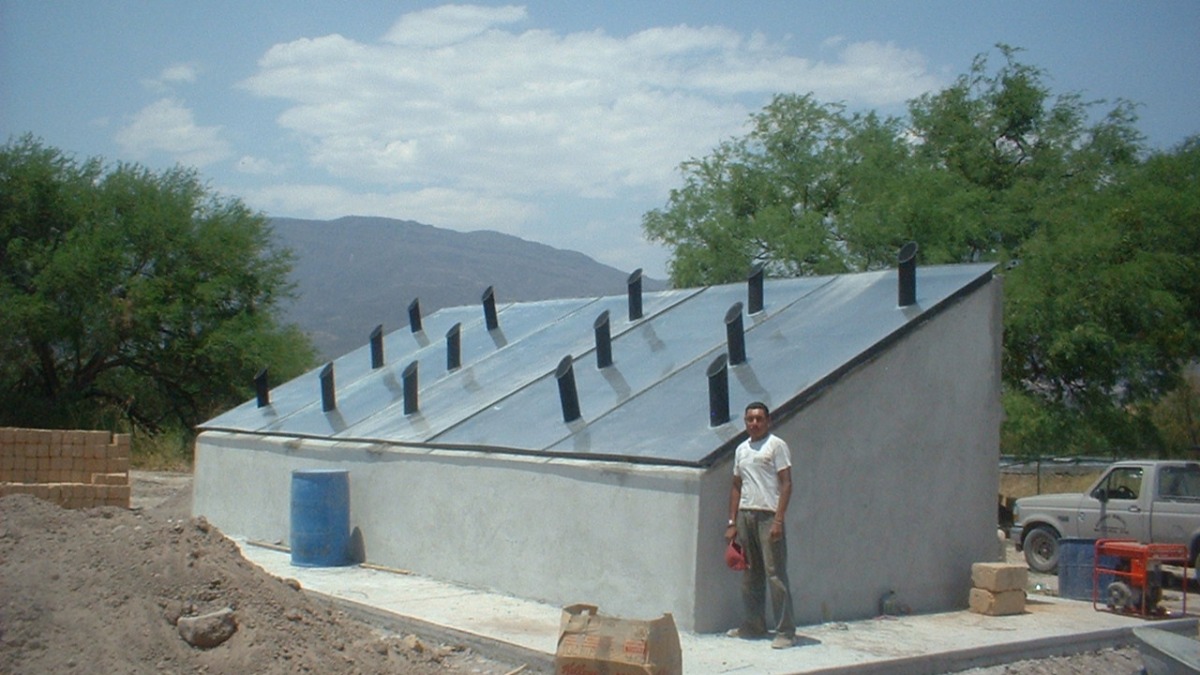

SIRDO-BC (IROWS-BC) for Zero Organic Waste & Recycle for Solids Solar Sub-System Solution (Sizes BC-060, BC-120, BC-160, only onsite built)

Offer SIRDO-BC (IROWS-BC) for Zero Organic Waste & Recycle for Solids Solar Sub-System Solution (Sizes BC-060, BC-120, BC-160, only onsite built)

Description

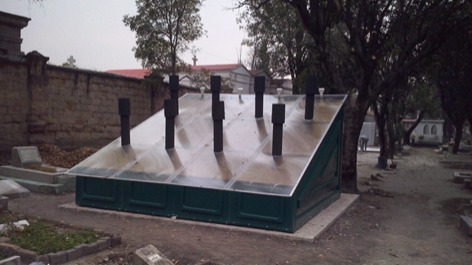

On-site Induced Stabilization Biological Chamber to receive/process up to 4+ daily cubic meters of organic solid waste.

Sub-system II of the SIRDO® process (by its acronym in spanish, translated "Integral Organic Waste Recycling System"©) consists of "Biological Chamber of Induced Stabilization"© (CBEI®) which, following the ethno-biological principle of using sludge with certain physico-chemical characteristics, constitutes a specially designed and unique habitat for thermophilic bacteria, which inoculates TERRA® ("prepared mixture") that properly disposed inside activate and initiate biological process of decomposition of solid organic waste ("SOW"), nutrient retention and transfer of organic carbon to the substrate, producing "High Quality Impact Bio-Fertilizer"© based only on solar energy and without emitting greenhouse gases, nor generating leachate, odors or putrefaction, provided that "management and operation protocols"© SIRDO® invented and, specifically developed, improved, tested and registered as industrial secrets to achieve that task, are applied consistently and regularly by non-professional staff previously trained for the "operation and operation"© of the CBEI®

Available in
Bolivia, Mexico,

Status
Implemented


SIRDO-BCp (IROWS-BCp) for Zero Organic Waste & Recycle for Solids Solar Sub-System Solution (Pre-fabricated ONLY ONE Size)

Offer SIRDO-BCp (IROWS-BCp) for Zero Organic Waste & Recycle for Solids Solar Sub-System Solution (Pre-fabricated ONLY ONE Size)

Description
Prefabricated Induced Stabilization Biological Chamber to receive/process 1/4 daily cubic meters of organic solid waste.

Sub-system II of the SIRDO® process (by its acronym in spanish, translated "Integral Organic Waste Recycling System"©) consists also of a PREFABRICATED "Biological Chamber of Induced Stabilization"© (CBEI®) which, following the ethno-biological principle of using sludge with certain physico-chemical characteristics, constitutes a specially designed and unique habitat for thermophilic bacteria, which inoculates TERRA® ("prepared mixture") that properly disposed inside activate and initiate biological process of decomposition of solid organic waste ("SOW"), nutrient retention and transfer of organic carbon to the substrate, producing "High Quality Impact Bio-Fertilizer"© based only on solar energy and without emitting greenhouse gases, nor generating leachate, odors or putrefaction, provided that "management and operation protocols"© SIRDO® invented and, specifically developed, improved, tested and registered as industrial secrets to achieve that task, are applied consistently and regularly by non-professional staff previously trained for the "operation and operation"© of the CBEI®

Available in
Mexico,

Status
Implemented

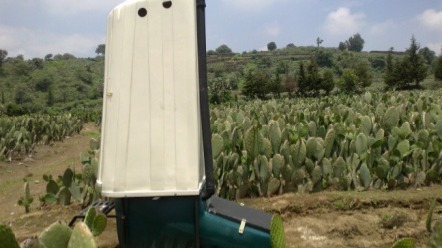

SIRDO (IROWS) DRY TOILETTE for Zero Organic Waste & Recycle Human Dung Dry Sanitary Seat Solar Sub-System Solution (Pre-fabricated ONLY ONE Size)

Offer SIRDO (IROWS) DRY TOILETTE for Zero Organic Waste & Recycle Human Dung Dry Sanitary Seat Solar Sub-System Solution (Pre-fabricated ONLY ONE Size)

Description
The DRY SANITARY SEAT, is made of rotomolded polyethylene with gelcoat coated hut for outdoors or without it for indoors

This DRY SANITARY SEAT, made of rotomolded polyethylene with gelcoat coated hut for outdoors, or without it for indoors, is used to accomplishe the following benefits: SAVE thousands of gallons or liters of clean and/or drinking water a year, that conventional toilets and W.Cs., uses all over the world. AVOID contamination (generated by human fecal matter) of the sources of water supplies, like ponds, lakes, rivers and the watertable as well as arable/farmable lands. PREVENT gastro-intestinal diseases that represent a primary factor for infant mortality and adult infections, all around the world mostly in rural areas. GENERATE a habitat for bacteria in the background which, applied according to protocol, reproduces indefinitely, without creating user dependencies. TRANSFORM human fecal matter in biofertilizer of excellent quality, free of pathogens and very rich in organic carbon which allows plants and trees of any kind to incorporate its also abundance of macro-nutrients. It has been proven that its agricultural use increases the production of vegetables and fruit trees. The primary condition is sunlight exposure (at least 4 hours / day). The technique consists in forming a layer of mother earth in which multiple colonies of thermophilic bacteria that have a triple function develop: 1.- Accelerate the aerobic decomposition of organic waste. 2.- Retain the macronutrients and transfer the organic carbon to the resulting product, 3.- Inhibit the proliferation of pathogens. (Opinion of Dr. Michael Cole Professor Micro-biologist of the University of Illinois, USA).

Available in
Mexico,

Status
Implemented

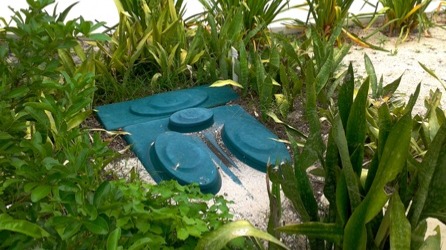

SIRDO (IROWS) WET-NotSewage for Zero Organic Waste & Recycle for All Business & Housing's Residual/Wastewater Solar Sub-System Solution (Pre-fabricated ONLY ONE Size)

Offer SIRDO (IROWS) WET-NotSewage for Zero Organic Waste & Recycle for All Business & Housing's Residual/Wastewater Solar Sub-System Solution (Pre-fabricated ONLY ONE Size)

Description
SIRDO WET is for all housing NOT DRAINAGE/SEWAGE, is made of fiberglass reinforced polyester resin and gelcoat coating.

This APPARTMENT's & Housing to recycle the sewage of bussines units, chalets, condos or hotel's villas or units, is designed to recover 70% of the wastewater used, providing it for irrigation of ornamental plants in evapotranspiration beds, and of course, with the following benefits: SAVES drinking water and beautifies your plants, since the effluent contains nutrients. CREATES a habitat for the bacteria that digest all sanitary sludge for ZERO discharges/emissions into the environment. The basic unit is made up of 3 parts: 1.- Primary sedimentation tank that leads the sludge towards the bottom (where the habitat for bacteria is located); it passes them through an Intermediate filter and returns them to the other compartment for secondary sedimentation. 2.- Triple compartment clarifier with habitat that operates as a clarifying coil that receives the effluent from the secondary tank. 3.- Evapotranspiration bed that sends the effluent for underground irrigation of plants and garden.

Available in
Mexico,

Status
Implemented

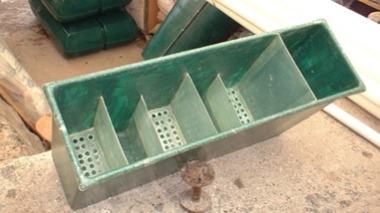

SIRDO (IROWS) FATS DIGESTOR for Zero Organic Waste & Recycle Sub-System Solution (Pre-fabricated ONLY ONE Size)

Offer SIRDO (IROWS) FATS DIGESTOR for Zero Organic Waste & Recycle Sub-System Solution (Pre-fabricated ONLY ONE Size)

Description
This FATS DIGESTOR, is made of fiberglass reinforced polyester resin and green gelcoat coating. It is NOT a fat trap.

TO DIGEST the fat/grease from the kitchen sink, washer machines and/or laundry as showers and other sinks effluents, allowing said effluents to be recycled for irrigation of ornamental plants and/or trees.

Available in
Mexico,

Status
Implemented

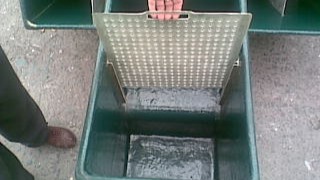

SIRDO (IROWS) BIO-DIGESTOR for Zero Organic Waste & Recycle for Couple/Individual's Residual/Wastewater Sub-System Solution (Pre-fabricated ONLY ONE Size)

Offer SIRDO (IROWS) BIO-DIGESTOR for Zero Organic Waste & Recycle for Couple/Individual's Residual/Wastewater Sub-System Solution (Pre-fabricated ONLY ONE Size)

Description
The BIO-DIGESTOR with TRIPLE COMPARTMENT, is made to recycle individual residual/wastewater (1-2 persons maximum)

The BIO-DIGESTOR with TRIPLE COMPARTMENT, is made to recycle the sewage of an appartment, chalet, condo or villa with 2 people, recovering 70% of the water used, for irrigation of ornamental plants and trees thru evapotranspiration beds. SAVES drinking water and beautifies your plants, since the effluent contains nutrients. CREATE a habitat for bacteria that digest sanitary sludge. ZERO downloads to the environment. The basic unit is made up of 2 parts: 1.- Triple compartment clarifier with habitat for tezontle and anthrasite bacteria in each one, which operates as a clarifying coil that forces the water to pass through the Habitat and digest the sanitary sludge. 2.- Evapotranspiration bed that sends the effluent for underground irrigation of plants and garden. The effluent complies with all international standards for watering reuse.

Available in
Mexico,

Status
Implemented


SIRDO (IROWS) BIOLOGICAL FILTER for Zero Organic Waste & Recycle Sub-System Solution (Pre-fabricated & OnSite Built, Several Sizes)

Offer SIRDO (IROWS) BIOLOGICAL FILTER for Zero Organic Waste & Recycle Sub-System Solution (Pre-fabricated & OnSite Built, Several Sizes)

Description
This BIOLOGICAL FILTER, is an onsite manufacturing masonry design with fiberglass reinforced polyester resin inner cone.

This BIOLOGICAL FILTER, an onsite manufacturing masonry design with fiberglass reinforced polyester resin inner cone, is use to recycle gray and/or soapy waters (from showers, sinks and tubes) to reuse them for free irrigation of gardens and edible plants, for washing floors and even to operate Toilets/WCs instead of using drinking water, if the building design make it fesible. SEPARATING black/residual water (from Toilets and/or WCs) from gray/soapy water is environmentally and economically fesible, viable and wishable by all standards and the considerable SAVINGS of drinking water that it implies. The size of this Biological Filter is calculated according to the amount of gray/soapy water that is intended to be recycled. It is possible to combine rainwater with the gray/soapy water production of the units. The tributary is distributed over the fiberglass cone through a PVC throat. It passes through filter material of anthrasite, sand and silica gravel to the habitat of bacteria (at the bottom of the filter) and goes up through the central duct sucked by pump.

Available in
Bolivia, Mexico,

Status
Implemented

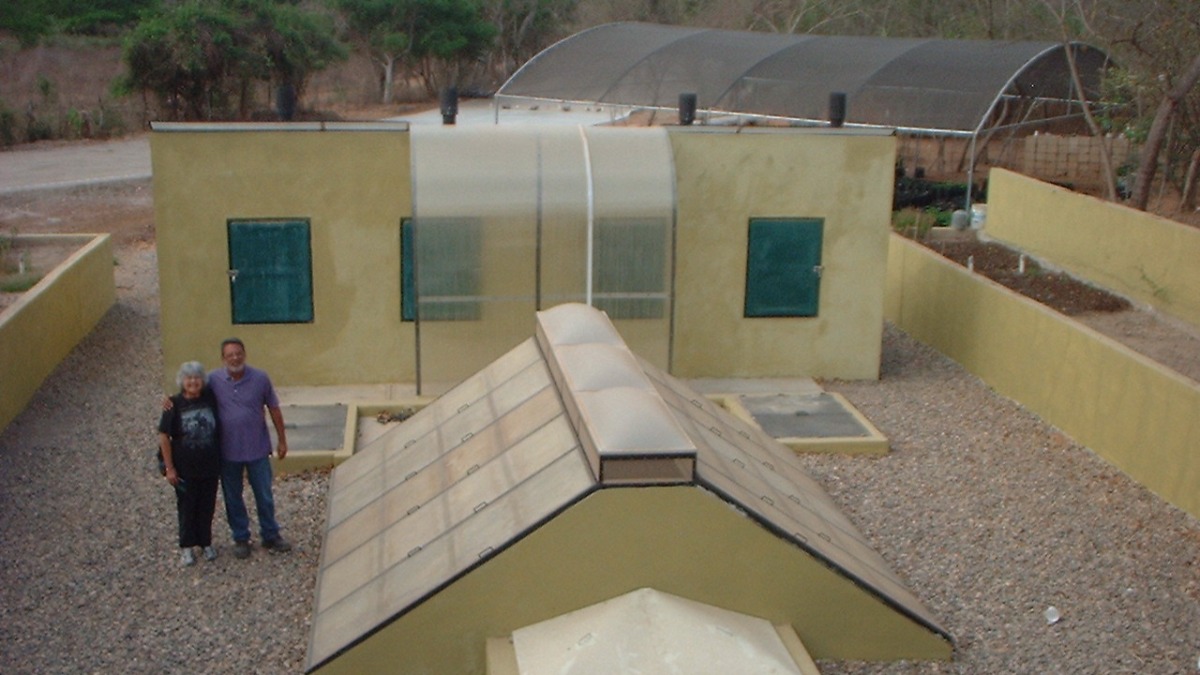

SIRDO-RF (IROWS-RF) for Zero Organic Waste & Recycle for Mixed/Non-Separated Residual/Wastewaters Only Solar Integral Solution (Sizes RF-20, RF-50, RF-80, RF-100, RF-120, RF-150, RF-160, RF-200 only onsite built)

Offer SIRDO-RF (IROWS-RF) for Zero Organic Waste & Recycle for Mixed/Non-Separated Residual/Wastewaters Only Solar Integral Solution (Sizes RF-20, RF-50, RF-80, RF-100, RF-120, RF-150, RF-160, RF-200 only onsite built)

Description
Recycle facility built to continuously attend up to 200+ families, around 1,000+ people average. Scalable up to 5,000+

Authentic originally designed habitats to carry out integrally the SIRDO® (by its acronym in spanish, translated "Integral Organic Waste Recycling System"©) process, which is completely done thru this kind of "Recycling Facilities"© that, following the ethno-biological principle consisting of using sludge with certain physical-chemical characteristics, allows to produce unique and specifically designed and registered environments/habitats like this in the picture, under the SIRDO® brand for inoculant thermophilic bacteria of TERRA® ("prepared mix") that properly disposed inside activates and initiates biological processes of decomposition of liquids mixed with solid organic waste from residual/wastewaters, nutrient retention and transfer of organic carbon to the substrate, producing "High Quality and Impact Bio-Fertilizer" only based on solar energy and without emitting greenhouse gases, or generating leachate, odors, pathogens or putrefaction, provided that, "management and operation protocols"© SIRDO® invented and specifically developed, improved, tested and registered (also subject to legal norms of industrial and intellectual property) to achieve to accomplish that, are consistently and regularly applied by non-professional personnel previously trained to correctly and promptly execute the indispensable tasks and routines, in precise times and movements to manage and operate the "Induced Stabilization Recycling Facility"® SIRDO®

Available in
Bolivia, Mexico,

Status
Implemented


SIRDO (IROWS) for Zero Organic Waste & Recycle Facilities for Fats, Solids and Gray/Soapy Waters Solar Sub-Systems Solutions (Several Sizes, only onsite built)

Offer SIRDO (IROWS) for Zero Organic Waste & Recycle Facilities for Fats, Solids and Gray/Soapy Waters Solar Sub-Systems Solutions (Several Sizes, only onsite built)

Description
This are equipments to be built onsite as complements for Recycle Facilities to be Integral Zero Organic Waste Solutions

This are equipments to be built onsite as complements for the 2 Recycle Facilities mentioned above as 1 and 10 in the list, to become Integral Zero Organic Waste Solutions. The FATS DIGESTOR serves to transform fat molecules into CO2 and dissolved oxygen. The BIOLOGICAL FILTER serves to recover 70% of the residual gray/soapy water of the units. The BIOLOGICAL CHAMBER serves to eliminate the pathogens contained in sanitary mud, since the temperatures rise to more than 50 degrees, generating a BioFertilizer free of pathogens and high quality and impact for agricultural and soil care and preservation.

Available in
Bolivia, Mexico,

Status
Implemented


SIRDO's (IROWS) Filtered Water Oxygenation Pond for RFs Zero Organic Waste & Recycle Solar Integral System Solution (Several sizes, only onsite built)

Offer SIRDO's (IROWS) Filtered Water Oxygenation Pond for RFs Zero Organic Waste & Recycle Solar Integral System Solution (Several sizes, only onsite built)

Description
This Filtered Water Oxygenation Pond is built onsite as a complement for the SIRDO Zero Organic Waste & Recycle Solution

The oxygenation pond improves the quality of the BioFilter effluent to be used with free irrigation; in such a way that each appartment, chalet, condo, house and/or villa, has 2 water entrances, the drinking water and water for irrigation and washing of floors; also accuses the presence of detergents in use.

Available in
Mexico,

Status
Implemented

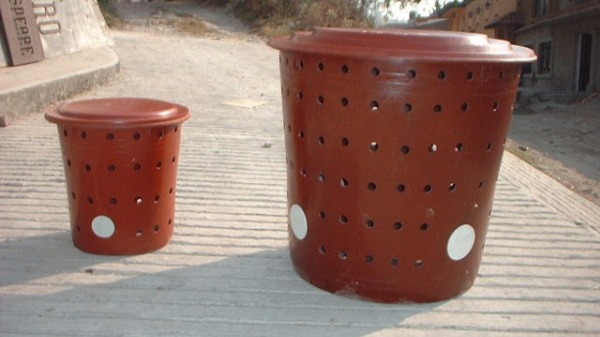

SIRDO-BBs (IROWS) for Zero Organic Waste & Recycle Solution for Appartments, Businesses, Housing and Groups Organic Solid Waste Generation (Prefabricated, only 7 different sizes)

Offer SIRDO-BBs (IROWS) for Zero Organic Waste & Recycle Solution for Appartments, Businesses, Housing and Groups Organic Solid Waste Generation (Prefabricated, only 7 different sizes)

Description
BIOLOGICAL BASKETs are manufacture with recycled plastics and receives less than 1 to 42 daily liters of organic waste.

BIOLOGICAL BASKETs are manufacture with recycled plastics, to receive from less than 1 daily liter to 42 daily liters of organic waste, depending on the equivalecens and sizes as follows: a) 12 liters sizes, receive and process 1 daily liter of fresh organic waste to transform them in BioFertilizer of high impact and quality for garden, plants and family greenhouse or vegetables production; b) 65 liters sizes, receive and process 3 daily liters of fresh organic waste to transform them in BioFertilizer of high impact and quality for garden, plants and family greenhouse or vegetables production; c) 130 liters sizes, receive and process 8 daily liters of fresh organic waste to transform them in BioFertilizer of high impact and quality for garden, plants and family greenhouse or vegetables production; d) 200 liters sizes, receive and process 12 daily liters of fresh organic waste to transform them in BioFertilizer of high impact and quality for garden, plants and family greenhouse or vegetables production; e) 300 liters sizes, receive and process 14 daily liters of fresh organic waste to transform them in BioFertilizer of high impact and quality for garden, plants and family greenhouse or vegetables production; f) 500 liters sizes, receive and process 28 daily liters of fresh organic waste to transform them in BioFertilizer of high impact and quality for garden, plants and family greenhouse or vegetables production; g) 650 liters sizes, receive and process 42 daily liters of fresh organic waste to transform them in BioFertilizer of high impact and quality for garden, plants and family greenhouse or vegetables production. Each of those sizes TRANSFORM organic waste in biofertilizer free of odors, pathogens and of excellent quality WITHOUT going through rot. PROCESS all types of organic waste: kitchen / garden waste including bones, agricultural waste and pet fecal matter. The BioFertilizer obtained from the process has been analyzed in its physical-chemical and bacteriological characteristics with very good results. The BIOLOGICAL BASKETs are very powerful individual and group tools for couples, families and small businesses and generators like schools and other organizations to actively collaborate in a daily basis for the reduction of garbash/trash which goes to landfills or other dropping sites, greenhouse gases that generate global warming. GENERATEs the awareness that small individual discipline behavior/steps are key for large accomplishments in short periods of time, that, also contributes as truly accessible and operational urban solutions. REDUCE the use of private and/or public transportation fleets used to pick-up garbash/trash from households, businesses and public offices, as they become onsite self-managed self-sufficient recyclers of their own daily solid organic waste, saving also all the economical and material resources needed for this to be accomplished by conventional means.

Available in
Mexico,

Status
Implemented
