We have developed an ageing-aware energy management and a sizing/diagnostic software for Li-ion battery energy system
SDG’s of application
The Solar Impulse Efficient Solution label seeks to bridge the gap between ecology and economy, bringing together protection of the environment and financial viability to show that these solutions are not expensive fixes to problems, but rather opportunities for clean economic growth.
Offers from Aurora's Grid

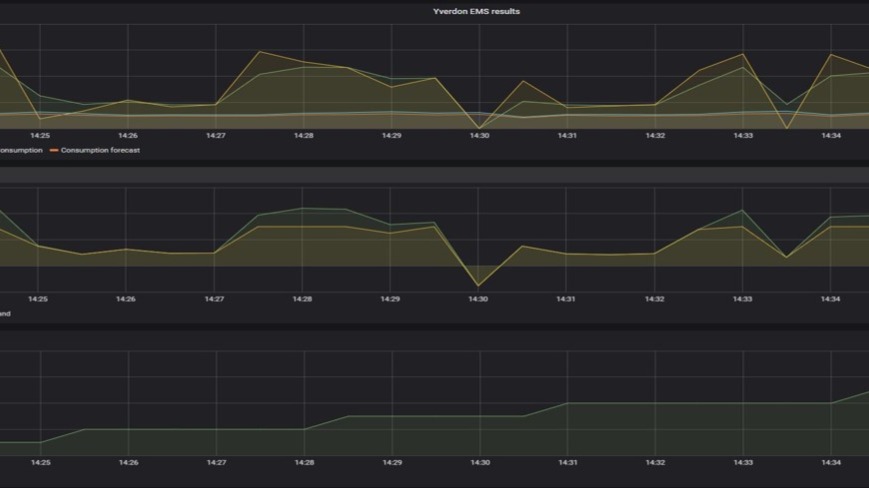

EMMA 1.0 is an ageing-aware energy management software for multiple application to be installed in Lithium-ion batteries
Aurora’s Grid has developed an ageing aware energy management software (EMMA 1.0) for Li ion batteries to be deployed in installation going from households to utility scale coupled with a renewable source of energy such as photovoltaic (PV) plants or wind turbines. The software is able to: • Increase the renewable energy self consumption up to 35% •Reduce the ageing of the battery up to 40% •Extend its lifetime (years) up to 30 % •Increase benefits up to 45%; •Provide Ancillary Services with battery ageing minimization •Reduce the peak power consumption up to 30% •Reduce the C02 foot print of the battery up to 20% The software couples deep electrochemical knowledge of Li ion batteries, power grid constraints and machine learning forecast techniques Aurora’s Grid started experimental validation along with industrialization phase in three different locations in Switzerland a microgrid,a household and a district

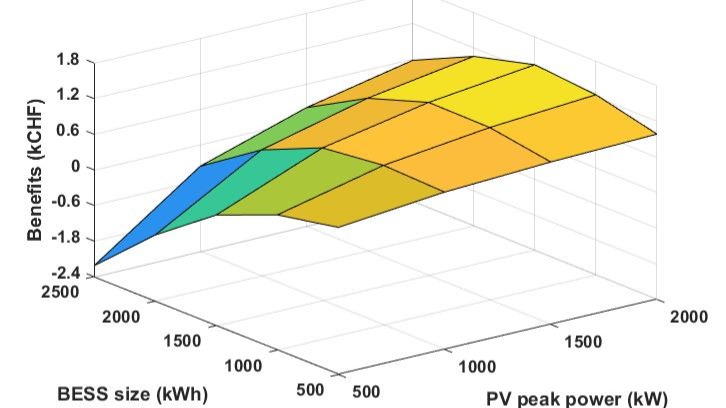

The sizing software developed by Aurora’s Grid has the purpose of improving the quality of the sizing by implementing electrochemical ageing models of the battery energy system (BES). Aurora's Grid sizing software offers various inputs such as: •Battery Chemistry • Load profile • PV profile and business case: • Self-Consumption • Peak-Shaving • Primary Frequency Control • Secondary Frequency Control The user can choose which revenue stream/business case he's willing to prioritize. The benefits and the ageing associated with the installation and the use of the BES are then computed for multiple BES size.
Aurora's Grid Diagnostic Tool
Aurora’s Grid tool is both online/offline tool monitoring the state of the health (SoH) of different Li-ion chemistry
Aurora’s Grid tool is both online/offline tool monitoring the state of the health (SoH) of different Li-ion chemistries (such as NMC, iron phosphate, titanate) and mitigating the operating risks of those batteries (short-circuit, thermal runway, etc). Our diagnostic tool needs to receive current, voltage and eventually temperature measurement of the cell and it will compute SoH and estimate lifetime (full equivalent cycles) of the targeted battery with the specified operating conditions. Of course the lifetime expectation could be adapted for different services such as self-consumption, primary and secondary frequency control, peak shaving, load shifting, etc. In addition to that, for real time usage it can prevent dangerous operating conditions of the batteries ( by detecting non-usual time evolutions of temperature and voltage). We have developed our Li-ion ageing model based on several years of experimental test.
